Teryl® edged tape

I select this reference which interests me
specifications	UNIT	T 016	T 011	T 014	T 014	T 017	T 017	T 019	T 139
1 - Thickness	mm	0.20	0.13	0.40	0.40	0.13	0.13	0.25	0.16
2 - Weaving		Sergé - Twill	Toile - Linen	Sergé - Chevron	Sergé - Twill	Toile - linen	Toile	Sergé - Twill	Toile - Linen
3 - Shrinkage at 140°C		Faible - Low	Forte - High	Forte	Forte - High	Moyenne - Medium	Moyenne	Forte - High	Forte - High
4 - Width	mm	10 à 50	10 à 50	10 à 50	20 à 50	10 à 60	10 à 50	10 à 50	10 à 50

Home page >> The catalogue >>

G. Electro technical tape

>> Teryl® edged tape

R : G02

Product description

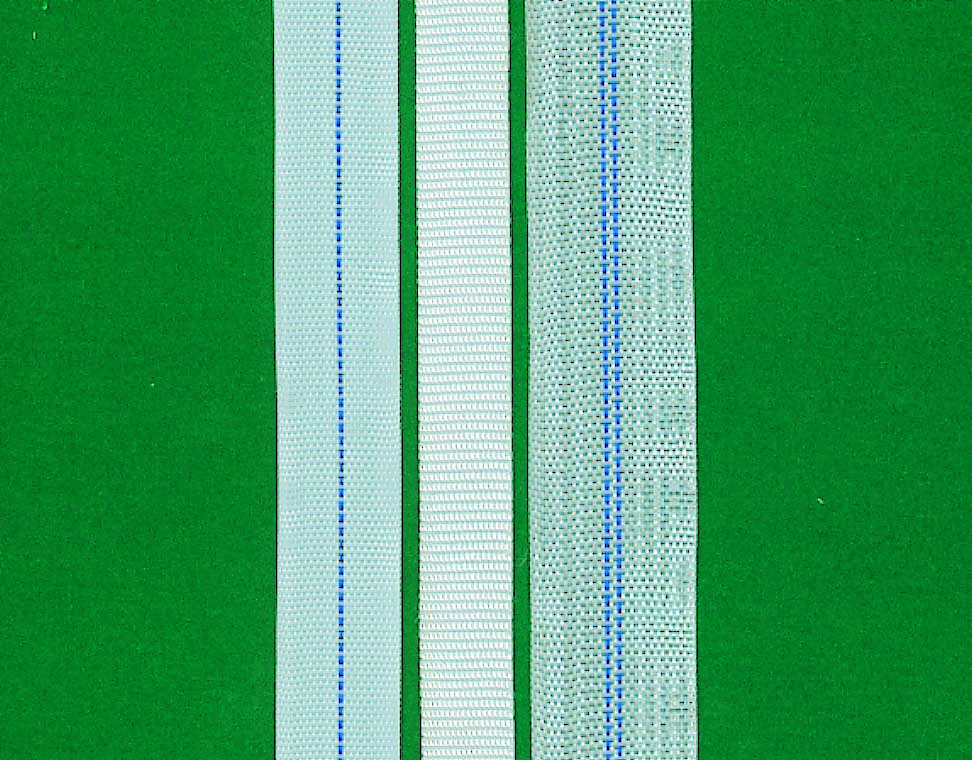

Teryl® edged tapes

Construction :
- Woven tapes with 100% Polyester yarn in wrap and weft, (continuous yarns). heat shrinkable.

Type of weaving :
- LINEN : Perpendicular weaving, wrap and weft. For a similar thickness, the linen weaving makes a tape with more holding, but less supple than serge weaving.
- SERGE : Herringbone weaving. It allows to have a tape which can bend out of shape slightly more easily than a linen woven tape, it better gets into its position in low radius bends.

Thermo shrinkage :
2 types : with no charge. Under charge. In the board of reference, we have indicated :

LOW MEDIUM HIGH
(< 5%) (≥ 5% < 10%) (≥ 10%)

NB : Please see the data sheet.PDF for the details.
